Consumer Present Mode (CPM)

Consumer Present Mode (CPM) is used for in-person barcode payments.
The customer presents a dynamic barcode from their wallet app, and the merchant scans it to initiate payment. This mode is designed exclusively for offline, face-to-face transactions (e.g. retail stores, restaurants, physical POS terminals).

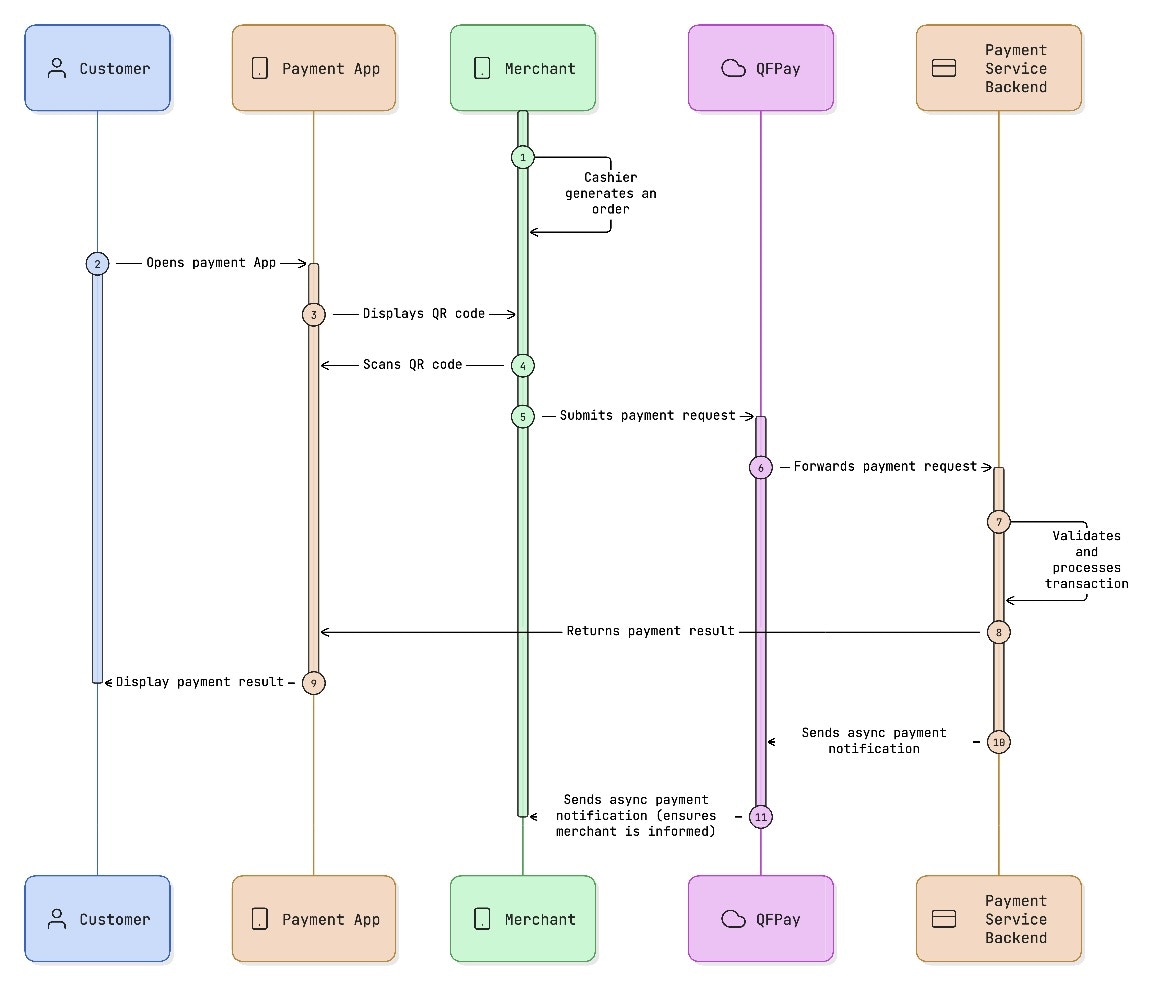

CPM process-flow

​
When to Use CPM

Use CPM when:
  • The customer is physically present
  • The customer displays a wallet barcode
  • The merchant scans the barcode using a POS device or scanner
  • Immediate payment confirmation is required

​
API Endpoint

Endpoint : /trade/v1/payment
Method : POST

​
Supported PayTypes

PayTypeDescription
800008WeChat, Alipay, UNIONPAY Quick Pass CPM
800108Alipay CPM (Overseas & HK Merchants)
800208WeChat CPM (Overseas & HK Merchants)
801008WeChat Pay HK CPM (Direct Settlement, HK Merchants)
805808PayMe CPM (HK Merchants)
800708UNIONPAY Quick Pass CPM
Refer to Signature Generation for request signing instructions.

​
Request Parameters

FieldRequiredTypeDescription
Common Parameters——Includes mchid, txamt, txdtm, etc.
auth_codeYes (CPM only)String(128)Authorisation code scanned from the customer’s wallet barcode. This value is unique per transaction and must be captured in real-time.

​
Example Request

HTTP
POST /trade/v1/payment HTTP/1.1
Content-Type: application/x-www-form-urlencoded
X-QF-APPCODE: A6A49A66B4C********94EA95032
X-QF-SIGN: 3b020a6349646684ebeeb0ec2cd3d1fb

auth_code=13485790*******88557&goods_name=qfpay&mchid=R1zQrTdJnn&out_trade_no=Native201907221520536a25477909&pay_type=800208&txamt=10&txcurrcd=HKD&txdtm=2019-07-22 15:20:54&udid=AA

​
Example Response

JSON
{
  "pay_type": "800108",
  "sysdtm": "2019-07-22 15:20:54",
  "paydtm": "2019-07-22 15:20:56",
  "txdtm": "2019-07-22 15:20:54",
  "udid": "AA",
  "txcurrcd": "EUR",
  "txamt": 10,
  "resperr": "交易成功",
  "respmsg": "OK",
  "out_trade_no": "201907221520536a25477909",
  "syssn": "20190722000300020081074842",
  "respcd": "0000",
  "chnlsn": "4200000384201907223585006133"
}

​
Response Behaviour

respcd indicates transaction result:
  • 0000 → Payment successful
  • 1143 or 1145 → Transaction is still processing
When 1143 or 1145 is returned:
  • The customer may still be entering their password
  • The wallet provider may still be confirming the payment
  • The transaction is not final
Merchants should call the Transaction Enquiry API to retrieve the final status.

​
Integration Notes

  • CPM is synchronous but may return a processing state (1143 / 1145).
  • Always treat 1143 / 1145 as pending, not failure.
  • Do not immediately retry a payment if processing is returned.
  • Use Transaction Enquiry to confirm final status.
  • Store the QFPay Transaction ID (syssn) for reconciliation.
  • Implement idempotency using your out_trade_no.

​
Response Parameters

FieldTypeDescription
syssnStringQFPay Transaction ID (Payment ID for this transaction)
out_trade_noStringMerchant Order Number
respcdStringReturn Code (0000 = success)
sysdtmStringQFPay system processing time
txdtmStringMerchant transaction time
paydtmStringActual payment completion time
chnlsnStringWallet-side transaction reference
